indoor optical receiver with return transmission
Payment Terms: |
T/T,L/C,WU |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Means of Transport:
Ocean
Packing:
10 pcs/carton 36x26x28cm /0...
Brand Name:
S+opt
Wave length:
1100nm~1600nm
Production Capacity:
10000 Piece/Pieces per Mont...
Delivery Date:
within 25 days after the re...
Model Number:
234486
Power Supply:
DV12V~15V
1.AGC control
2.1310&1550 double windows, two outputs
3.With return transmission
product name:

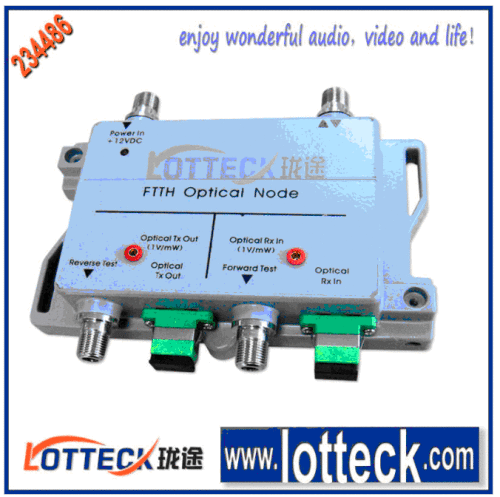

indoor optical node with return transmission
Model Number:234486
for FTTH, FTTP, FTTO, FTTS /pin diode photoelectricitymodules/ GAS amplifying modules / AGC control/With return transmission
Features |
---|
1) Especially designed for FTTH, FTTP, FTTO, FTTS |
2) Adopting Pin diode as Photo electricity modules |
3) Adopting Gallium Arsenide Modules as amplifying modules |
4) AGC control |
5) 1310&1550 double windows, two outputs |
6) With return transmission |
Technical Parameters: |
---|
Forward Input: | -10~+3 (-3~+1 is the best value) |
Wave length: | 1100nm~1600nm |
Frequency: | 54-862MHz |
Output: | ≥82dBV |
Unflatless: | ≤±1 |
Optical Return Loss | ≥ 45dB |
Output Return Loss | ≥ 16dB |
Output Impendence: | 75Ω |
Output Level: | ≥100dBuV |
CTB | ≥65dB |
CNR | ≥51dB |
CSO | ≥60dB |
Power Supply: | DV12V~15V |
Return Transmission: |
Laser: | FP/DFB |
Output: | 0.5mW, 1mW, 2mW |
Wave length: | 1310nm±30nm or 1550±30nm |
Optical Connector: | SC/APC or FC/APC |
Bandwidth: | 5-42MHz |
Output Impedance: | 75Ω |
Output Return Loss: | ≥ 14dB |
Input Level: | 85-90dBuV |
Unflatless: | ≤±1 |
indoor optical node with return transmission
